PET EVOH PE High Barrier Sheet for Packaging Display
For modern industrial food processors utilizing automated Thermoform-Fill-Seal (TFS) lines, the choice of packaging web determines both production throughput and cold-chain shelf life. PET/EVOH/PE High-Barrier Thermoforming Film is engineered specifically as a high-performance flexible or semi-rigid bottom web. By combining the mechanical stability of PET, the gas-blocking properties of EVOH, and the low-temperature sealing performance of PE, this co-extruded material is optimized for high-volume automated vacuum packaging and Modified Atmosphere Packaging (MAP) lines.
The Dynamic Barrier Matrix: How It Works
Rather than relying on visual display properties, this configuration optimizes the thickness ratios of each polymer layer to withstand extreme mechanical drawing and protect the food matrix inside:
The PET Structural Support: Functions as the tough outer skin. It provides the tensile strength required to prevent thin-outs at the corners during deep thermoforming vacuum draws, while resisting the direct heat of sealing plates.
The EVOH Gas Lock: The primary active shield. It restricts oxygen ingress to an absolute minimum, preventing aerobic bacterial growth, lipid oxidation (fat rancidity), and color degradation in fresh proteins.
The PE Fusion Matrix: Designed with excellent hot-tack properties, this layer melts rapidly under pressure to seal directly through grease, moisture, or food residue contaminating the tray flange.
Engineering Advantages for Automated TFS Processing Lines
Integrating this specific PET/EVOH/PE formulation into industrial processing lines (such as Multivac, Ulma, Repak, or Dixie Union automated webs) solves critical mechanical bottlenecks:
Precise Material Distribution in Deep Draws: When thermoforming deep pockets for large meat blocks or cheese wheels, standard films can thin out at the corners, creating microscopic weak spots. This film features optimized elongation properties, ensuring a uniform wall thickness across the entire pocket geometry.
Excellent Gas Retention for MAP Systems: Modified Atmosphere Packaging requires a stable internal gas ratio (e.g., precise $O_2 / CO_2 / N_2$ blends). The central EVOH layer locks these gases inside the package, preventing gas migration and maintaining a modified atmosphere for the entire duration of cold-chain logistics.
High-Speed Seal Integrity: Industrial lines operate at rapid cycle speeds. The inner PE layer features a low sealing initiation temperature, allowing the heat-sealing station to form an airtight, leak-proof weld without slowing down production rates.
Primary Industrial Processing Applications
This high-performance flexible/semi-rigid packaging material is widely utilized across large-scale industrial food processing sectors:
Fresh and Processed Meats: Ideal for automated vacuum packaging of whole primal cuts, steaks, ground beef, sausages, and bacon slices, significantly extending shelf life within the cold chain.
Industrial Cheese Packaging: Used as a formable bottom web for gas-flushed block cheeses, shredded cheese pouches, and sliced deli varieties, preventing mold development and moisture loss.
Seafood and Aquaculture: Perfect for vacuum skin packaging (VSP) or MAP sealing of fresh fish fillets, shrimp, and processed seafood products prone to rapid oxidation.
Pasteurized and Ready Meals: Designed to withstand low-temperature pasteurization and quick-freeze processes, making it highly reliable for pre-cooked entrees and institutional catering packs.
Understanding the Core Layer Formulation
The performance of PET EVOH PE Blister Sheet for Custom Shape Thermoforming relies on an asymmetric or symmetric multi-layer structure where each polymer layer targets a specific vulnerability in modern cold-chain distribution:
The PET Outer Matrix (Top-Load Stability): Provides the necessary stiffness and tensile modulus required to prevent tray deformation under high stacking loads. Its high surface tension and resistance to thermal shrinkage ensure the tray flange remains flat during transport and storage.
The Copolymer Tie Layers (Delamination Shield): Specially selected tie resins form a strong molecular bond between the incompatible polar EVOH and non-polar PE/PET layers. This prevents any blistering or layer separation when the material is subjected to sharp corners or rapid temperature drops during blast freezing.
The EVOH Core Barrier (The Active Gas Lock): Acts as a dense crystalline wall that restricts oxygen ($O_2$) and nitrogen ($N_2$) transmission. It prevents gas migration through the tray walls, keeping the internal atmosphere stable to slow down aerobic spoilage and discoloration.
The PE Inner Layer (Contamination Sealing): Formulated with excellent hot-tack kinetics, this product-contact layer is engineered to seal cleanly through grease, moisture, or food particles that might splash onto the tray rim during high-speed filling.

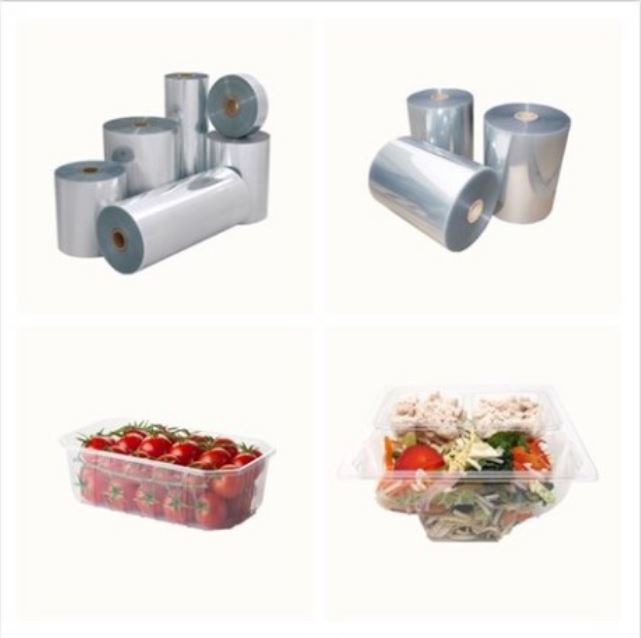

Products Applications:
Our Service
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
Application
Packing and Delivery
Global Food Safety Certifications & Quality Tracking
Our manufacturing processes prioritize hygiene and regulatory transparency to meet strict international supply chain audits:
HEPA-Filtered Extrusion Zones: Extrusion, slitting, and rewinding are carried out within clean, positive-pressure environments to ensure the film is free from dust, black spots, or biological particulate contamination.
Regulatory Dossiers: Every batch is shipped with complete traceability paperwork, including compliance certificates for FDA food-contact regulations, EU Commission Regulation No. 10/2011, REACH/RoHS standards, and BRCGS Global Standard for Packaging Materials.
Industrial Protection Packaging: Finished rolls are wrapped in protective moisture-barrier films, secured with heavy-duty core plugs, and palletized with reinforced edge guards to ensure safe arrival via global freight routes.
Global Safety Compliance & Secure Export Packing
Our manufacturing processes prioritize hygiene and regulatory transparency to meet strict international supply chain audits:
Class 100,000 Cleanroom Processing: Extrusion, slitting, and final winding take place within positive-pressure, HEPA-filtered spaces to eliminate any risk of ambient contaminants, black spots, or biological loads.
Regulatory Dossiers: Every batch is shipped with complete traceability paperwork, including compliance certificates for FDA food-contact regulations, EU Commission Regulation No. 10/2011, REACH/RoHS standards, and BRCGS Global Standard for Packaging Materials.
Suspension Export Packaging: Finished rolls are wrapped in anti-static film, vacuum-sealed with industrial desiccants, and suspended inside rugged export crates via heavy-duty end plugs, ensuring the web arrives free from flat spots or edge warping.
